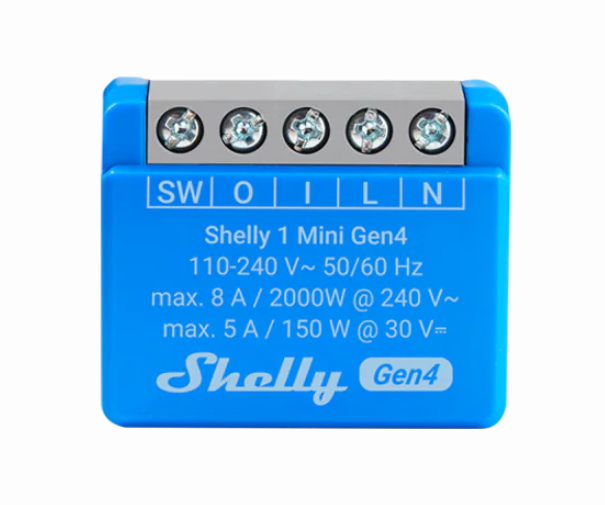

Shelly 1 Mini Gen4

Physical

Size (HxWxD):

29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch

Weight:

19 ±1 g / 0.65 ±0.04 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Mounting:

Wall box

Shell material:

Plastic

Shell color:

Blue, C-95%; M-53%; Y-0%; K-0%

Connectors color:

Grey (Mouse Grey)

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 V~

Relay:

Dry, NO contact, 1-pole, µ contact

Power consumption:

< 1.2 W

External protection:

Tripping characteristic B or C,
max. 10A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3

Output circuits ratings

Max. switching voltage:

• 240 V~

• 30 V⎓

Max. switching current:

• 8 A/240 V~

• 5 A/30 V⎓

Max. output power:

• 2000 W/240 V~

• 150 W/30 V⎓

Voltage protection / Cutoff:

No

Current protection / Cutoff:

No

Max power protection / Cutoff:

No

Sensors, meters

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2412 - 2472 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocol:

802.15.4

RF bands:

2400 to 2483.5 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

SW

Switch (controlling O) input terminal

L

Live (110 - 240 V~) wire

O

Load circuit output terminal

N

Neutral wire

I

Load circuit input terminal

L

Live (110-240 V) terminal

N

Neutral terminal
