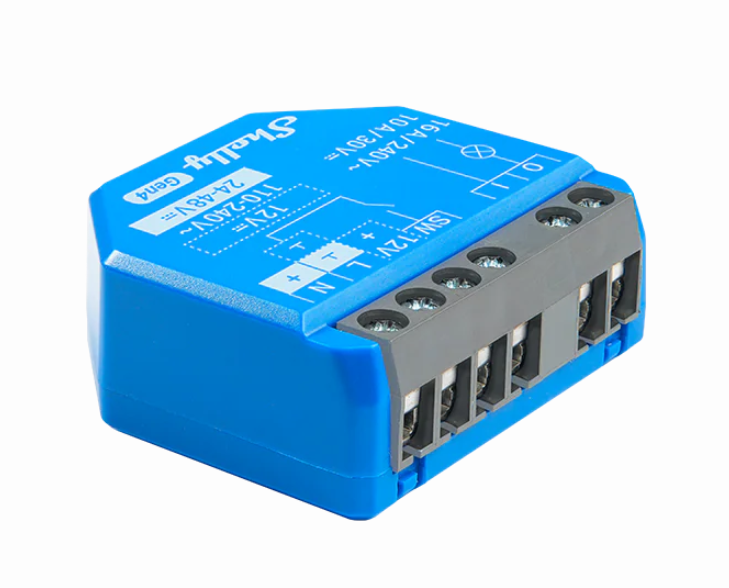

Shelly 1 Gen4

Shelly 1 Gen4

Shelly 1 Gen4
0.00 € 0.00 €

  • Product type
  • Technology - Bluetooth
  • Installation
  • Inputs
  • Outputs
  • Current
  • Power supply
  • Packaging
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Product type: Relay Switch
Technology: Bluetooth
Installation: Behind socket/switch
Inputs: 1
Outputs: 1
Current: 16A
Power supply: 110-240V AC

Name: Shelly 1 Gen4
Internal Reference: 3800238070687
Display Name: [3800238070687] Shelly 1 Gen4

3

Years Warranty

Typically used for

Relay Switches

Ships from the EU

All orders

Technical Specifications

Quantity

Value

Physical

Size (HxWxD):

37x42x16 mm / 1.46x1.65x0.63 inch

Weight:

26 g / 0.92 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Mounting:

Wall console

Shell material:

Plastic

Shell color:

Blue

Terminals color:

Grey

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

  • 110-240 V~

  • 24-48 V⎓

  • 12 V⎓

Power consumption:

< 1 W

Neutral not needed:

No

External protection:

Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)

Output circuits ratings

Max. switching voltage:

  • 240 V~

  • 30 V⎓

Max. switching current:

  • 16 A/240 V~

  • 10 A/30 V⎓

Sensors, meters

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2401 - 2483 МHz

Max. RF power:

< 20 dBm

Range:

Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions)

Bluetooth

Protocol:

5 (LE)

RF band:

2402 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)

Zigbee

Protocol:

3.0

Zigbee repeater:

Yes

RF bands:

2405 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 300 m / 984 ft outdoors, up to 100 m / 328 ft indoors (depending on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

1 Gen3 AC.png 110-240 V~ power supply

1 Gen3 DC.png 24-48 V⎓ power supply

1 Gen3 12V.png 12 V⎓ stabilized power supply

Terminals


Wires


I

Load circuit input terminal

L

Live wire (110-240 V~)

O

Load circuit output terminal

N

Neutral wire

SW

Switch (controlling O) input terminal

+

12/24-48V ⎓ positive wire

+12V

12 V⎓ positive terminal

GND

12/24-48V⎓ ground wire

L

Live terminal (110-240 V~)



N

Neutral terminal

+

24-48 V⎓ positive terminal

Ʇ

12/24-48V⎓ ground terminal
