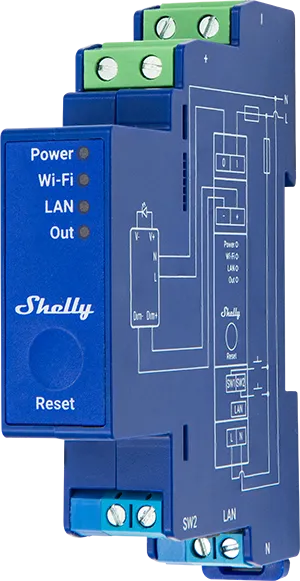

Shelly Pro Dimmer 0/1-10V PM

Physical

Size (HxWxD):

94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in

Weight:

70 g / 2.5 oz

Screw terminals max torque:

0.4 Nm / 3.54 lbin

Conductor cross section:

0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)

Mounting:

DIN

Shell material:

Plastic

Shell color:

Blue

Connectors color:

• Green

• Blue

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 V~

Power consumption:

< 3 W

Neutral not needed:

No

0-10V/1-10V voltage control type:

Current sourcing

External protection:

16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

Output circuits ratings

Max. switching voltage:

240 V~

Max. switching current:

16 A

Sensors, meters

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Power and energy meters:

• Active and apparent power

• Active and apparent energy

• Power factor

• Fundamental active and fundamental reactive energy

Measurement data storage:

No

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2412 - 2472 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP32-D0WDQ6

Clock frequency:

40 Mhz

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

Advanced schedules

Yes

KVS (Key-Value Store):

Yes

O

Relay output terminal

L

Live (110-240 V~) wire

I

Relay input terminal

N

Neutral wire

+

0-10 V⎓ positive terminal

-

0-10 V⎓ negative terminal

SW1

Switch/button input terminals for light control

SW2

Switch/button input terminals for light control

LAN

Local Area Network RJ 45 connector

L

Live (110-240 V~) terminal

N

Neutral terminal

Dim+/Dim-

Positive/negative terminal of the LED driver

V+/V-

Positive/negative output of the LED driver
