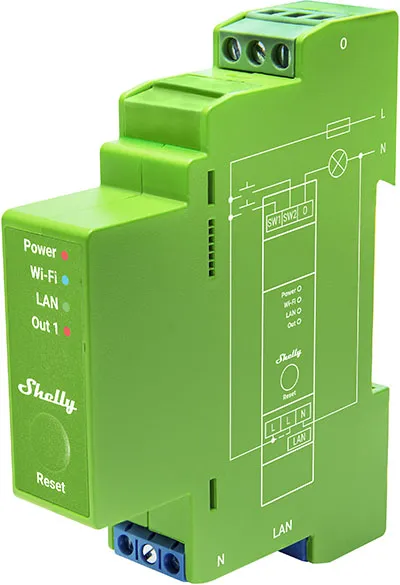

Shelly Pro Dimmer 1PM

Physical

Size (HxWxD):

94x19x69 mm / 3.70x0.75x2.71 in

Weight:

75 g / 2.7 oz

Screw terminals max torque:

0.4 Nm / 3.54 lbin

Conductor cross section:

0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
0.5 to 1.5 mm² / 20 to 16 AWG (blue connector)
(solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in (green connectors)
5 to 6 mm / 0.20 to 0.24 in (blue connector)

Mounting:

DIN rail

Shell material:

Plastic

Shell color:

Lime

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 V~ 50/60 Hz

Power consumption:

< 2 W

External protection:

10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

Dimming type:

Trailing edge

Output circuits ratings

Max. current:

0.85 A

Max. output power:

200 W (at 220 V~)

100 W (at 120 VAC)

Sensors, meters

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Power and energy meters:

Yes

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2401 - 2483 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2400 - 2483.5 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP32-D0WDQ6

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

SW1, SW2

Switch/button input terminals controlling O

L

Live (110-240 V) wire

O

Load circuit output terminal

N

Neutral wire

L

Live (110-240 V) terminals

N

Neutral terminal

LAN

Local Area Network RJ 45 connector
