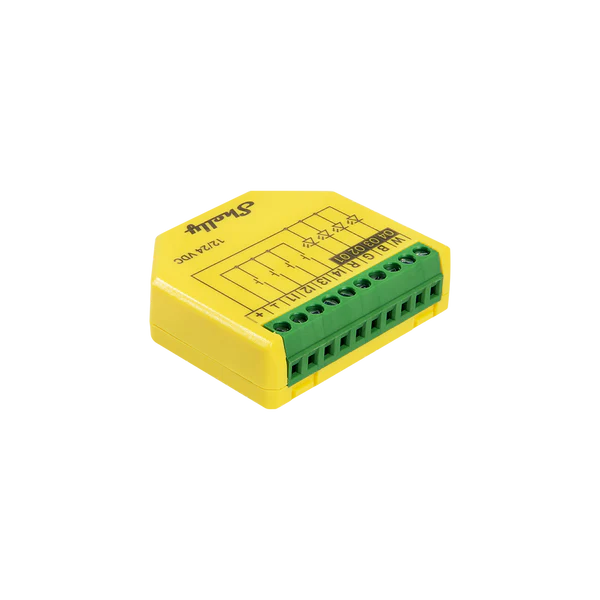

Shelly Plus RGBW PM

Physical

Size (HxWxD):

42x37x12 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in

Weight:

17 g / 0.60 oz

Screw terminals max torque:

0.2 Nm / 1.8 lbin

Conductor cross section:

0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 mm / 0.24 in

Mounting:

In-wall

Shell material:

Plastic

Shell color:

Yellow

Connectors color:

Green

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Electrical

Power supply:

12/24 VDC

Power consumption:

< 1.2 W

Output circuits ratings

Max. control voltage:

24 VDC

Max. control current:

4 A per channel (10 A total)

PWM frequency

833 Hz

Sensors, meters

Voltmeter:

0-24 V

Voltmeter accuracy:

± 5%

Ammeter:

0-10 A

Ammeter accuracy:

± 10%

Power and energy meters:

Power measurement

No load threshold:

0.5 VA per channel

Internal-temperature sensor:

Yes

Radio

Wi-Fi

RF band:

• IEEE 802.11b/g/n HT20: 2412–2472 MHz

• IEEE 802.11n HT40: 2422-2462 MHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2400 - 2483.5 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly C38F

Clock frequency:

160 Mhz

RAM:

400 KB

Flash:

4 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

Scripting:

Yes

Wiring in light mode

Wiring in rgbw mode

Wiring in rgb mode

+

12/24 VDC positive terminal

+

Positive wire

⊥

12/24 VDC negative terminal

-

Negative wire

I1, I2, I3, I4

Switch/button/potentiometer input terminals for light control

R, G, B

Red, Green, and Blue channel outputs (when in rgb or rgbw mode)

W

White channel output (when in rgbw mode)

O1, O2, O3, O4

Light outputs (when in light mode)
