Specifications
| colour | transparent |
| complies with | EN 60998-2-2:2004; EN 60998-1:2004 |
| contact material | CuSn |
| current | 32 A |
| dimensions | 24.4 × 20.1 × 9.2 mm |
| energy efficiency class | – |
| for conductor cross-section | 0.2–4 mm2 |
| hole diameter | – |
| insulation voltage | EN 60998-2-1 (250 V) |
| material | Nylon PA66 UL94 V-0 |
| number of ways | 4 |
| packaging | 10 pcs, packet |

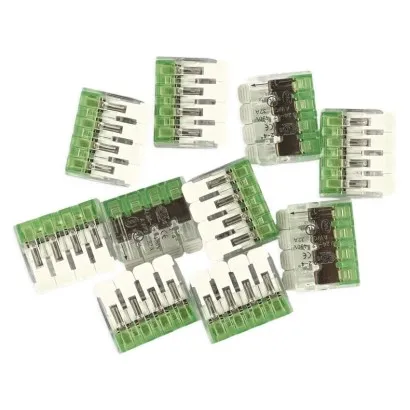

| product | non screw clip |
| rated voltage | 450 V~ |
| self-extinguishing | EN 60695-2-11 (850°C) |
| spring material | stainless steel |
| UV protection | no |
| warranty period | 2 years |
| wire stripping length | 12 mm |
| working temperature range | -10°C – 85°C |
