J0801
Universal Antenna VILLAGE DIO-V750, DVB-T2, LTE/4G/5G Filter
| Use: Indoor/Outdoor |
| Antenna Type: Passive with external amplifier |
| Recommended installation distance from TV tower: 0–80 km (village) |
| Amplifier: External low-noise amplifier with separate source |
| Manufacturer: EMOS |
Internal Reference:
2704310000
The most important parameters
| use | indoor/outdoor |
|---|---|
| antenna type | passive with external amplifier |
| recommended installation distance from TV tower | 0–80 km (village) |
| amplifier | external low-noise amplifier with separate source |
Other parameters
| signal reception | DVB-T/T2 |
|---|---|
| suitable for receiving Full HD broadcasts | yes |
| suitable for reception from multiple transmitters | yes |
| reception angle | 90° |
| polarization | horizontal or vertical |
| suitable for long distance reception | yes |
| LTE filter | yes |
| frequency bands | UHF |
| length of coaxial cable in the package | 8.5 m |
| connectors | F, IEC |
| amplifier in full-metal body, resistant to interference | yes |
| power supply | DC USB 5 V/550 mA (included) |
| frequency range | 470–698 MHz |
| gain control | yes |
| suitable for caravans, motorhomes | yes |
| connectors in the package | 2 pc |
| STB (set-top-box) | yes |
| output RF impedance | 75 Ohm |
| number of elements | not stated |
| installation | not stated |
| front to back ratio | not stated |
| maximum power of the output signal | not stated |
| 5G filter | yes |
| dimensions | 230 × 325 × 20 mm |
| packaging | 1 pc, box |
Room and outdoor antenna DIO-V750
The EMOS digital antenna will impress you above all with its versatility. It has a total of 4 mounting methods: on an antenna mount, balcony railing, wall or indoor stand. Its external low-noise amplifier, which is powered from the mains or directly from the receiver (TV or set-top box), gives it high gain. It can handle terrestrial TV reception in both DVB-T and DVB-T2 (the only broadcast standard from 2021). And to ensure that it doesn't become unnecessarily stressed by unwanted mobile signal reception, LTE a 5G filter serves as an unbreakable shield against it.

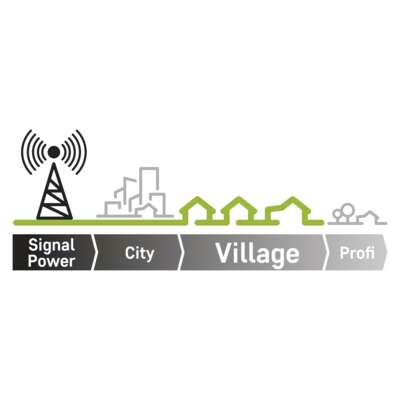

Correct selection is important
City: Antennas for locations covered by high quality and stable signal. Most often these are room antennas, which are offered in many designs.
Village: Antennas for places covered by high quality signal. These are especially the so-called universal antennas, which excel in ease of installation, where everything needed for installation can be found directly in the package. The antennas can be installed both indoors and outdoors.
Profile: Antennas for long-distance reception in places with low signal strength and quality. For successful installation of these antennas, correct routing to the transmitter and at least basic skills and technical knowledge are required.

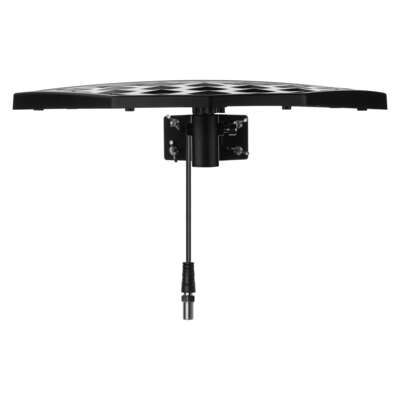

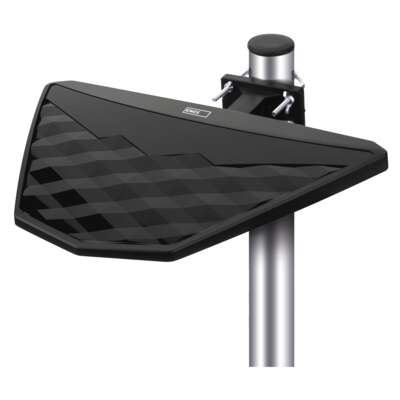

On the roof?
The role of a typical roof antenna does not give her any problem. It's made of high quality ABS plastic that resists water, wind and UV rays. You can mount it to the mast in minutes by tightening just 4 screw nuts. For the best possible TV signal, it features horizontal and vertical polarization, a receiving angle of 90° and the ability to pick up signals from multiple transmitters simultaneously.
On the wall or on the balcony?
You don't have to climb to the roof for it at any cost. The same wide range of TV channels is available if you mount it on a facade or balcony railing. You can conveniently connect it to your set-top box or directly to the TV using the included 10m coaxial cable with a thickness of only 3 mm. Thanks to this, there is no drilling through the wall to the balcony, this thin coaxial will fit seamlessly into the window.

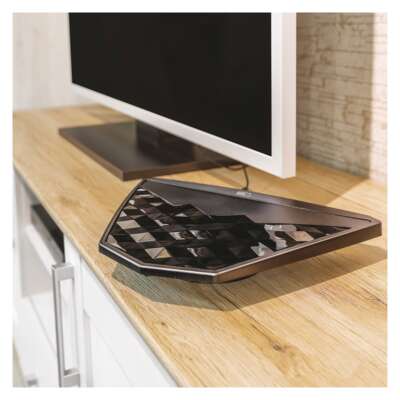

Inside?
The simplest and most elegant solution comes last - inside antenna. It comes with a handy stand that lets you turn it into a modern addition to your living room wall. With the right TV, you can enjoy your favorite shows in Full HD quality.

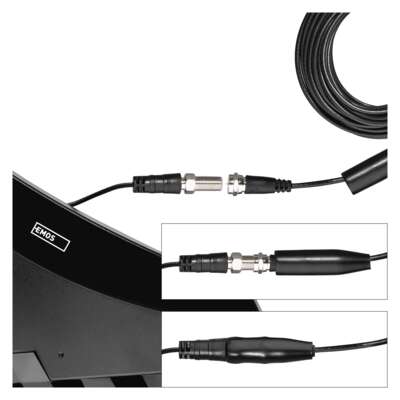

Safe connection
We have equipped the antenna and coaxial cable connection with a resistant rubber cap that protects against water and other weather hazards. Your antenna will thus be perfectly protected against all undesirable influences.

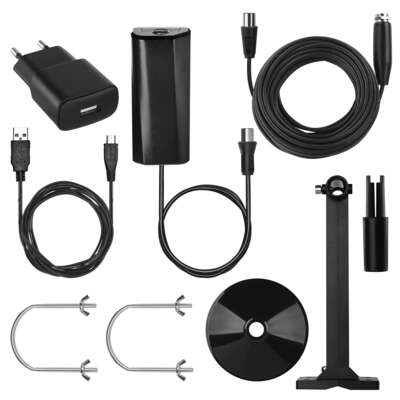

Power supply by USB adapter
A great advantage is the fact that the antenna is now powered by USB adapter. The universal power supply allows the antenna to be used even in places without 230 V mains power, i.e. in a caravan, TIR or on holiday on a boat. You can thus use it wherever a USB adapter is available. Included in the package is a power source in the form of a USB cable and USB power supply. The USB port can be used directly in the TV or set-top box for power supply.
