J0680

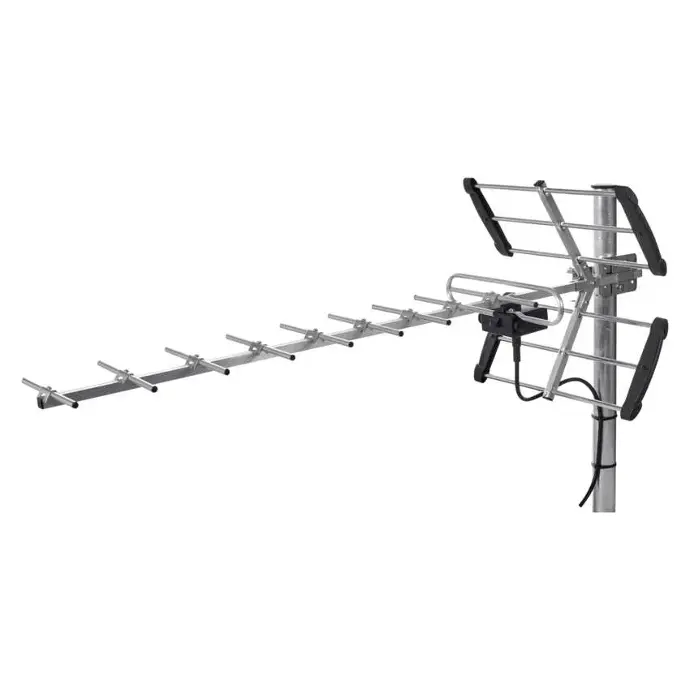

PROFI Outdoor Antenna EMOS EM-116, 0–80 km DVB-T2
| Use: Outdoor |
| Antenna Type: Passive without amplifier |
| Recommended installation distance from TV tower: 0–80 km (Village) |
| Amplifier: No |
| Manufacturer: EMOS |
Internal Reference:
2704030000
The most important parameters
| use | outdoor |
|---|---|
| antenna type | passive without amplifier |
| recommended installation distance from TV tower | 0–80 km (village) |
| amplifier | no |
Other parameters
| signal reception | DVB-T/T2 |
|---|---|
| suitable for receiving Full HD broadcasts | yes |
| suitable for reception from multiple transmitters | no |
| reception angle | 34°/26° |
| polarization | horizontal or vertical |
| suitable for long distance reception | yes |
| LTE filter | yes |
| frequency bands | UHF |
| length of coaxial cable in the package | not stated |
| connectors | F connector |
| amplifier in full-metal body, resistant to interference | not stated |
| power supply | passive |
| frequency range | 470–790 MHz |
| gain control | not stated |
| suitable for caravans, motorhomes | no |
| connectors in the package | not stated |
| STB (set-top-box) | not stated |
| output RF impedance | 75 Ohm |
| number of elements | 16 |
| installation | not stated |
| front to back ratio | 19–26 dB |
| maximum power of the output signal | not stated |
| 5G filter | no |
| dimensions | 1000 × 360 × 340 mm |
| packaging | 1 pc, header card |
