J0400

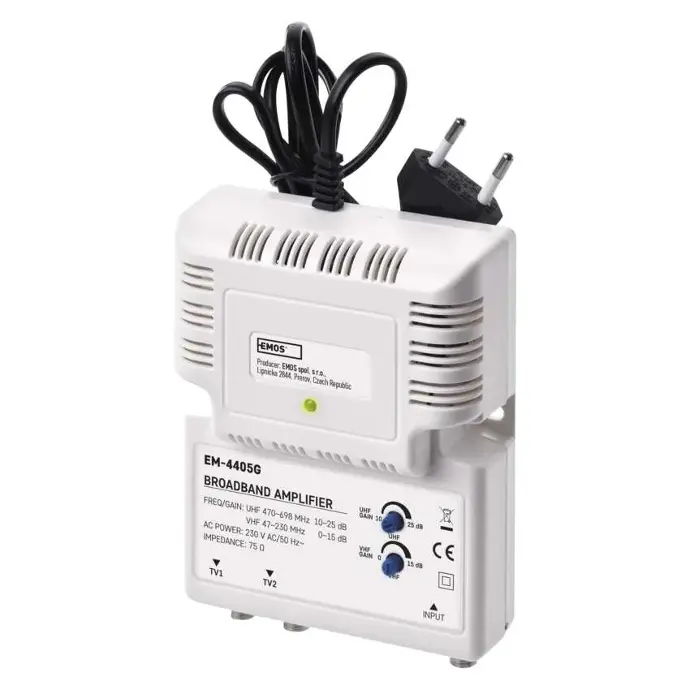

Broadband Amplifier EM-4405G
| Power supply: 230 V +/-10 %, 50/60 Hz, 3 W |
| Product: broadband home amplifier |
| Inputs: F Connector, 1 |
| Connectors: F female |
| IP rating: IP20 |
| Frequency range: 47–230 MHz, 470–698 MHz |
| Dimensions: 105 × 135 × 40 mm |
| Number of outputs: 2 |
| Gain: 25 dB |
| Noise figure: <3.0 dB |
| Isolation between inputs: Not Stated |
| Maximum output signal level: 108 dBµV |
| Gain control: 0–15 dB |
| Hole spacing: Not Stated |
| LTE filtr: Yes |
| Stop Band: 400–470 MHz, 699–2 200 MHz |
| Attenuation in the stop band: Not Stated |
| Manufacturer: EMOS |
Internal Reference:
2506000800
The most important parameters
| product | broadband home amplifier |
|---|---|
| inputs | F connector |
| frequency range | 47–230 MHz, 470–698 MHz |
| gain | 25 dB |
| noise figure | <3.0 dB |
| power supply | 230 V +/-10 %, 50/60 Hz, 3 W |
| isolation between inputs | not stated |
| connectors | F female |
| maximum output signal level | 108 dBµV |
| inputs | 1 |
| number of outputs | 2 |
| stop band | 400–470 MHz, 699–2 200 MHz |
| attenuation in the stop band | not stated |
| power pass | no |
| gain control | 0–15 dB |
| hole spacing | not stated |
| IP rating | IP20 |
| dimensions | 105 × 135 × 40 mm |
| LTE filtr | yes |
Other parameters
| packaging | 1 pc, box |
|---|---|
| 5G filter | yes |
