J0102

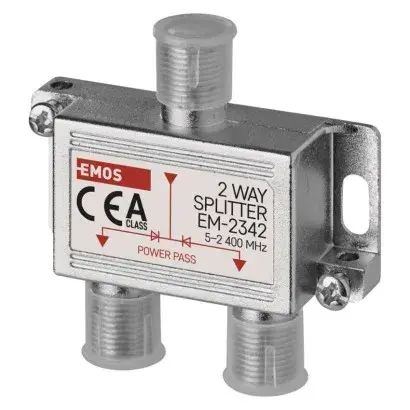

Splitter EM2342
| Connectors: F female |
| Frequency range: 5–2 400 MHz |
| Insertion Loss: 3.7dB |
| Number of inputs: 1 |
| Number of outputs: 2 |
| Manufacturer: EMOS |
Internal Reference:
2504500110
The most important parameters
| number of inputs | 1 |
|---|---|
| connectors | F female |
| number of outputs | 2 |
| insertion loss | 3.7 dB |
| frequency range | 5–2 400 MHz |
Other parameters
| version | ferritic |
|---|---|
| power pass | yes, 2× |
| using | TV + R |
| working temperature | -10–+65 °C |
| hub body material | zinc casting |
| dimensions | 25 × 35 × 20 mm |
| IP rating | IP20 |
| rebound damping on input | not stated |
| pass-band ripple | not stated |
| packaging | 1 pc, box |
