J0199

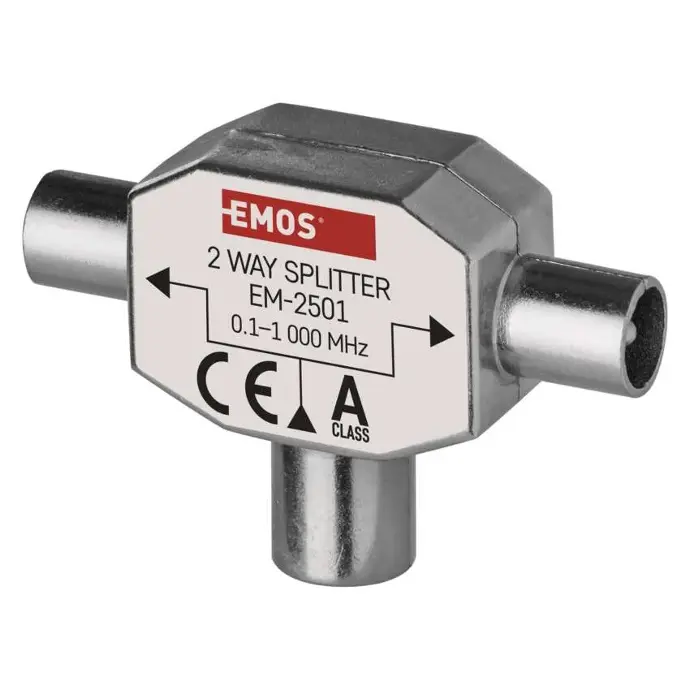

Ferrite Splitter
| Connectors: IEC |
| Frequency range: 0.1–1 000 MHz |
| Insertion Loss: 3.5dB |
| Number of inputs: 1 |
| Number of outputs: 2 |
| Manufacturer: EMOS |
Internal Reference:
2504200100
Product description
Universal ferrite splitter EU 2501/D194. The splitter is used in cases where, for instance, you want to connect two TVs to a single subscriber outlet. Also works in the opposite direction as a combiner.
The most important parameters
| number of inputs | 1 |
|---|---|
| connectors | IEC |
| number of outputs | 2 |
| insertion loss | 3.5 dB |
| frequency range | 0.1–1 000 MHz |
Other parameters
| version | ferritic |
|---|---|
| power pass | yes |
| using | TV + R |
| working temperature | -10–+65 °C |
| hub body material | zinc casting |
| dimensions | 17 × 32 × 23 mm |
| IP rating | IP20 |
| rebound damping on input | not stated |
| pass-band ripple | not stated |
| packaging | 1 pc, header card |
| product | splitter |
