J0197

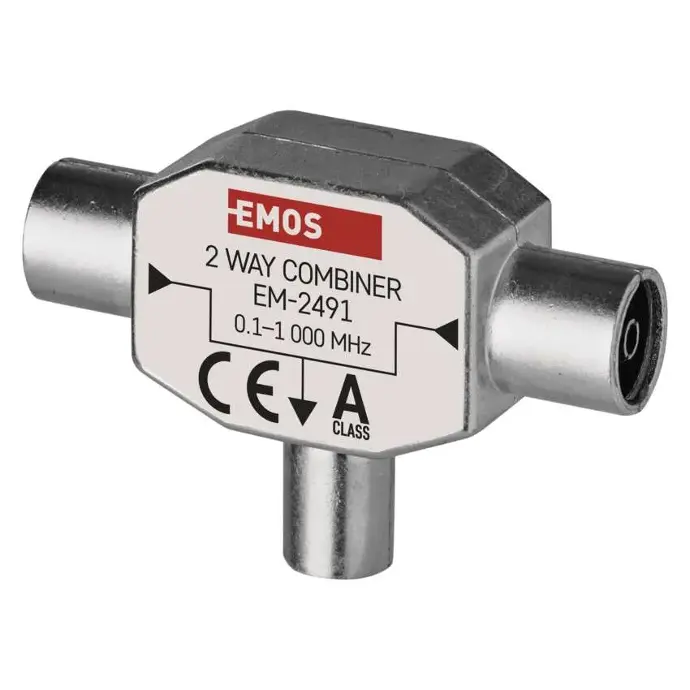

Ferrite Combiner
| Version: Universal Ferritic |
| Inputs: 2 |
| Connectors: IEC |
| IP rating: IP20 |
| Frequency range: 0.1–1 000 MHz |
| Body material: Zinc Casting |
| Outputs: 1 |
| Suitable for merging of satellite signals: No |
| Using: TV + R |
| Working temperature: -10–+65 °C |
| Power pass: Yes |
| Insertion Loss: 3.5dB |
| Dimensions: 17 × 32 × 23 mm |
| Rebound damping on input: Not Stated |
| Manufacturer: EMOS |
Internal Reference:
2503000100
Product description
Universal ferrite combiner EU 2491 (D193). The combiner is used in situations where you want to e.g. merge two antennas into a single subscriber outlet. Also works in the opposite direction as a splitter.
The most important parameters
| version | universal ferritic |
|---|---|
| inputs | 2 |
| connectors | IEC |
| IP rating | IP20 |
| frequency range | 0.1–1 000 MHz |
| body material | zinc casting |
| outputs | 1 |
| suitable for merging of satellite signals | no |
| using | TV + R |
| working temperature | -10–+65 °C |
| pass-band ripple | not stated |
| power pass | yes |
| insertion loss | 3.5 dB |
| dimensions | 17 × 32 × 23 mm |
| rebound damping on input | not stated |
Other parameters
| packaging | 1 pc, PVC packet |
|---|---|
| product | signal combiner SAT+TV |
